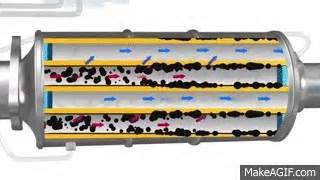

Astonishing Visuals Watch How DPF Regeneration Comes to Life in this MindBlowing Animation

By “recent, ” we mean 2007; diesel trucks from that model year and onward are “blessed” with a diesel particulate filter (DPF). These filters grab soot from your exhaust before it blows out into the environment. It’s a wall-flow filter usually made of cordierite, silicon carbide, or a ceramic monolith.

As the exhaust gasses pass through the filter, it captures somewhere between 85%-100% of diesel particulate matter (DPM). The filter removes a

DPF maintenance is relatively straightforward. A warning light usually shows up, indicating it is time to literally burn out the accumulated soot. In addition to regeneration, periodic DPF cleaning is required, too.

Diesel Particulate Filters Dpf

DPF regen happens when the trapped particulates heat up enough to combust and turn to ash. The built-up soot is then removed as gaseous carbon dioxide.

Passive regeneration happens automatically. Once the exhaust temperature reaches a certain point—we like to use the example of driving at high speeds—the built-up matter in the DPF turns to ash.

No active changes in engine operation are involved. As another example, diesel trucks that frequently climb hills should have no problem passively regenerating their DPF. Under these conditions, soot burns off as fast as it is generated!

Diesel Particulate Filter Market On A Billion Dollar Highway

Active regeneration happens when changes in engine operation are required to get the Engine Control Module (ECM) to burn out and/or some catalyst is introduced. This is common among trucks with a lighter duty cycle, because soot accumulates while idling or going slowly through traffic.

One active regeneration method involves the ECM tweaking engine parameters to increase the exhaust temperature. The ECM then switches on an extra fuel injector that shoots fuel into the exhaust stream. This fuel reacts with a catalyst and burns the built up soot out of the DPF.

If active regen requirements aren’t met or soot levels rise to a certain point, you may need to perform a forced regeneration. You’ll need a diagnostic tool for this. You’ll also want to get to work on it sooner rather than later, as continuing to operate the vehicle at this stage can ruin the DPF and cause other damage.

Causes Of Dpf Failure And How To Perform A 'regeneration'

But even a forced regen will not work if soot levels have overwhelmed the DPF. At about 85% soot capacity and above, the DPF will need to be either removed and cleaned or replaced.

You’ll need to clean the DPF every 150, 000 to 300, 000 miles to remove accumulated ash. This ash buildup is not necessarily related to regens, but is most often due to sulfated ash in the engine oil. You’ll also need to clean the filter if a fuel injector or turbo problem causes contamination with engine oil or non-combusted diesel. This contamination causes unacceptable back pressure.

Cleaning methods include air blasting, the use of deionized water, and a vacuum-like system. You’ll need to clean very, very carefully so as not to damage the filter, and removing particulate matter must be handled with the proper equipment and care so technicians are not exposed to its extremely fine contaminants.

Liqui Moly 5171 Diesel Particulate Filter Purge Fluid

You guessed it: the diesel particulate filter is one more thing that must be tracked and maintained on a heavy-duty truck. Making sure the truck is on a regular preventive maintenance program will help ensure the long life of the DPF, as will regularly replacing air filters and fuel filters. While expensive for truck owners, the removal of diesel particulate matter before it blows into our breathing air certainly has its benefits, and using the correct type of oil for the engine will also help prevent unnecessary wear and the problems that can come with it.

Fortunately, makes it easy to maintain your or your customers’ DPFs—but that’s not all. It also helps you track preventive maintenance, streamline your shop’s operations, and run a more profitable business. Schedule a free demo of our shop management software.

Jacob Findlay Jacob Findlay is the Co-Founder & Executive Chairman of . Five years ago, he made the leap from healthcare to truck repair. He wanted to take the best ideas from the electronic medical records world and apply them to heavy-duty repair. In other words, build a medical record for trucks. Today is the number one fleet repair platform in North America. Jacob is a CPA licensed in Arizona, has a Master's degree in Accounting, a cellist, a so-so surfer, and the father of eight children.52 product ratings 4.1 average based on 52 product ratings 5 5Stars, 37 product ratings 37 4 4Stars, 4 product ratings 4 3 3Stars, 1 product rating 1 2 2Stars, 1 product rating 1 1 1Stars, 9 product ratings 9 Would recommend Good value Good quality See all 39 reviews

Dpf Regeneration Mysteries — Emissions Analytics

New: A brand-new, unused, unopened and undamaged item in original retail packaging (where packaging ... Read moreabout the condition New: A brand-new, unused, unopened and undamaged item in original retail packaging (where packaging is applicable). If the item comes direct from a manufacturer, it may be delivered in non-retail packaging, such as a plain or unprinted box or plastic bag. See the seller's listing for full details. See all condition definitionsopens in a new window or tab

Take a look at our Returning an item help page for more details. You're covered by the Money Back Guarantee if you receive an item that is not as described in the listing.

Most purchases from business sellers are protected by the Consumer Contract Regulations 2013 which give you the right to cancel the purchase within 14 days after the day you receive the item. Find out more about your rights as a buyer and exceptions .

Hydroflow Carbon Cleaning. Dpf Restoration Treatment Without Removal

(UK) Limited is an appointed representative of Product Partnerships LimitedLearn more about Product Partnerships Limited - opens in a new window or tab (of Suite D2 Joseph’s Well, Hanover Walk, Leeds LS3 1AB) which is authorised and regulated by the Financial Conduct Authority (with firm reference number 626349). (UK) Limited acts as a credit broker not a lender. We may receive commission if your application for credit is successful, the commission does not affect the amount you will pay under your agreement.

Finance is provided by PayPal Credit (a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. Société en Commandite par Actions Registered Office: 22-24 Boulevard Royal L-2449, Luxembourg). If you would like to know how we handle complaints, please click hereLearn more about Product Partnerships Limited - opens in a new window or tab . To access our initial disclosure document, please click hereLearn more about Product Partnerships Limited - opens in a new window or tab .

Added JLM product to fuel tank ( filled to capacity ) premium diesel ( other diesels available ) .ran car until refuelling required again ( motorway miles )220 miles in total in one around journey .no light displayed on dash now .great product will use again in the future .T Wilkinson

Video: Ford Super Duty Diesel Throwing Flames

I’ve used half a tank of fuel so far after adding the product and am now getting uneven running. I did 2 runs at 2500/3000 revs on mostly A roads 40 mile round trip’s. Plus some short runs without the high revs. The Jury is out at the moment. Maybe some carbon has dislodged and needs clearing. Back pressure could be a contributing factor. Not a lot of smoke from the exhaust. Perhaps it needs cleaning through the sensor straight into the filter.? I do about 1100 miles a week so shouldn’t really be in this situation. Regular petrol cars in the future.!!

My wife's car had dpf warning lights on for about a month, I tried other cleaners but no good. Then I saw this and thought I would pay the extra money and hope it works. Two days after putting it in the tank and taking it for a run all warning lights are gone and the car is running a lot better 😃. I would recommend it to anyone having trouble with a dpf fault. Very happy customer.

Used this product on my zafira which was choked up with loss of power. Put this in the tank and cured the problem. Totally amazing stuff. Worth spending the extra money.

Diesel Particulate Filter Cleaning: The Dangers Of Diy Cleaning

Buy it now - DPF DIESEL PARTICULATE FILTER CLEANER CLEANING FLUID EFFECTIVE FIX 375ML JLM Add to Watch list Added to your Watch listStuart Still of European Exhaust and Catalyst talks us through the causes of DPF failure and the process of performing a ‘static regeneration’ using its new DPF reset tool.

Last year, on my visits to various customers, I made enquiries about the general demand for Diesel Particulate Filters. I was staggered at the lack of DPF knowledge, especially the procedure regarding installation, encountering answers such as: “We regard it as a main dealer product” or: “We need specialist diagnostic tools”.

EEC subsequently decided to eliminate one of these major objections. We contacted a diagnostic tool company and discussed the opportunity of becoming our partners in a venture to create a specialised hand-held DPF diagnostic tool.

Understanding Dpf Maintenance

After many months of hard work collating all of the data required to deliver an easy-touse, hand-held solution, the EEC DPF Reset Tool was born.

The DPF is a filter that removes particulates and soot/carbon from the
